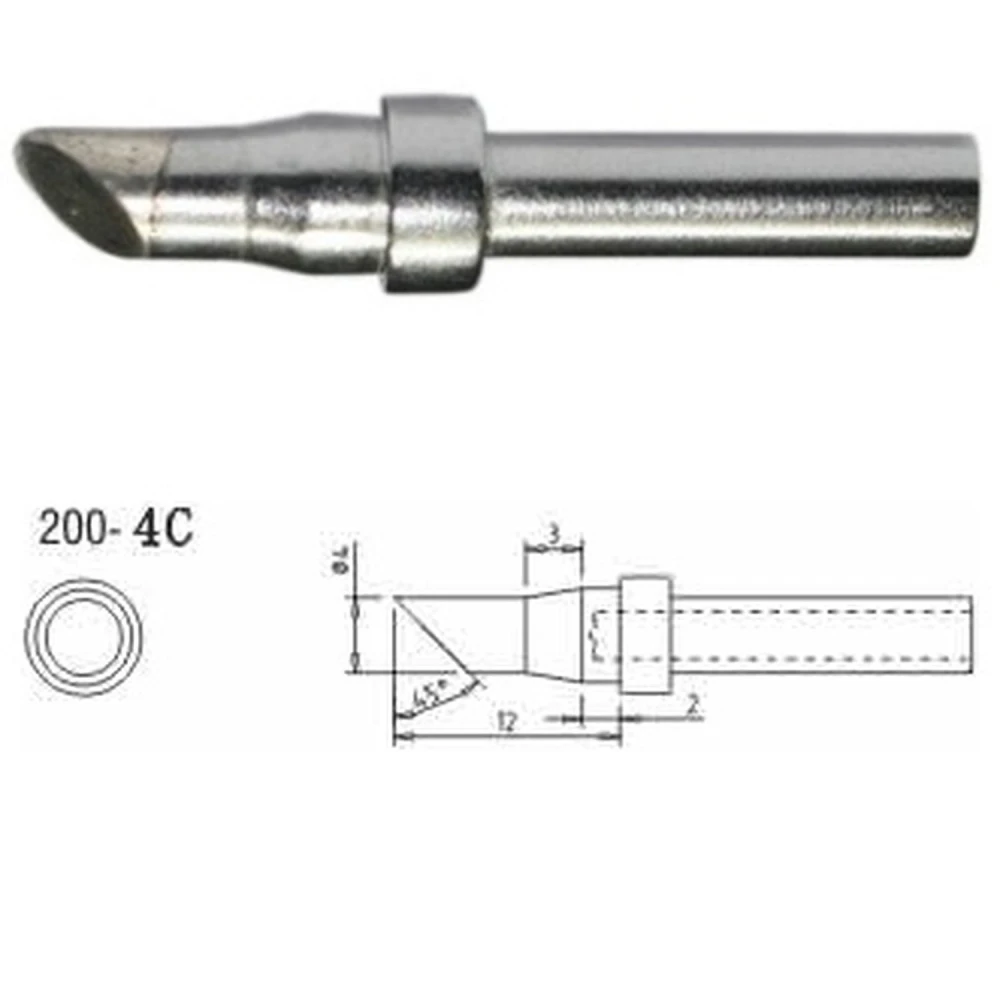

Mlink S4 MOD 200-4C soldeerpunt vervanging compatibel met Quick 203h en Atten at150d

Aquesta punta sol estar fabricada en coure recobert de ferro i niquelat amb una capa final d’estany. Aquesta combinació maximitza la conducció tèrmica i la resistència al desgast; tanmateix, el recobriment exterior es pot desgastar amb soldadures agressives o neteges inadequades, afectant la vida útil.

Es recomana esperar que el cautí estigui fred abans d’instal·lar la punta. Simplement retireu la punta anterior i feu lliscar la nova assegurant un bon ajust sense forçar. Un cop col·locada, engegueu l’estació i deixeu que la punta s’estabilitzi a la temperatura de treball abans d’utilitzar-la.

Sí, la majoria de les puntes tipus 200 suporten temperatures entre 200 °C i 480 °C. Evitar superar aquest rang ajuda a prevenir el deteriorament prematur del recobriment de la punta i manté un rendiment òptim en transferències tèrmiques.

En condicions normals d’ús, la Mlink S4 Mod 200-4c ofereix una precisió i una vida útil raonablement similars a les puntes originals de Quick o Atten, sempre que s’utilitzin materials i processos de fabricació equivalents. Tanmateix, la capacitat de retenció de temperatura pot variar lleugerament segons el gruix del recobriment i l’ajust al cautí.

Under normal use, the Mlink S4 Mod 200-4c offers reasonably similar precision and service life to original Quick or Atten tips, provided equivalent materials and manufacturing processes are used. However, heat retention may vary slightly depending on coating thickness and fit in the soldering iron.

The tip is mainly made of copper with iron coating and, in some models, an additional layer of nickel and oxide. This combination provides high thermal conductivity (copper) and resistance to wear and corrosion (iron/nickel), which favours efficient heat transfer and longer service life under normal electronic soldering conditions.

Service life varies depending on use and maintenance, but typically exceeds 40,000 thermal cycles under controlled conditions. To extend it, it is crucial to clean the tip after each use, avoid overheating (ideally ≤400 °C) and use compatible solder and flux.

This tip offers greater thermal precision than generic alternatives thanks to its specific compatibility with high-frequency 200-type stations. Non-certified tips may damage the heater or provide poorer heat transfer, so approved replacements are preferable for professional applications.

This tip is usually made of copper coated with iron and nickel-plated with a final tin layer. This combination maximises thermal conductivity and wear resistance; however, the outer coating can wear with aggressive soldering or improper cleaning, affecting service life.

It is recommended to wait until the soldering iron is cold before fitting the tip. Simply remove the old tip and slide the new one in, ensuring a good fit without forcing it. Once fitted, switch on the station and allow the tip to stabilise at working temperature before use.
