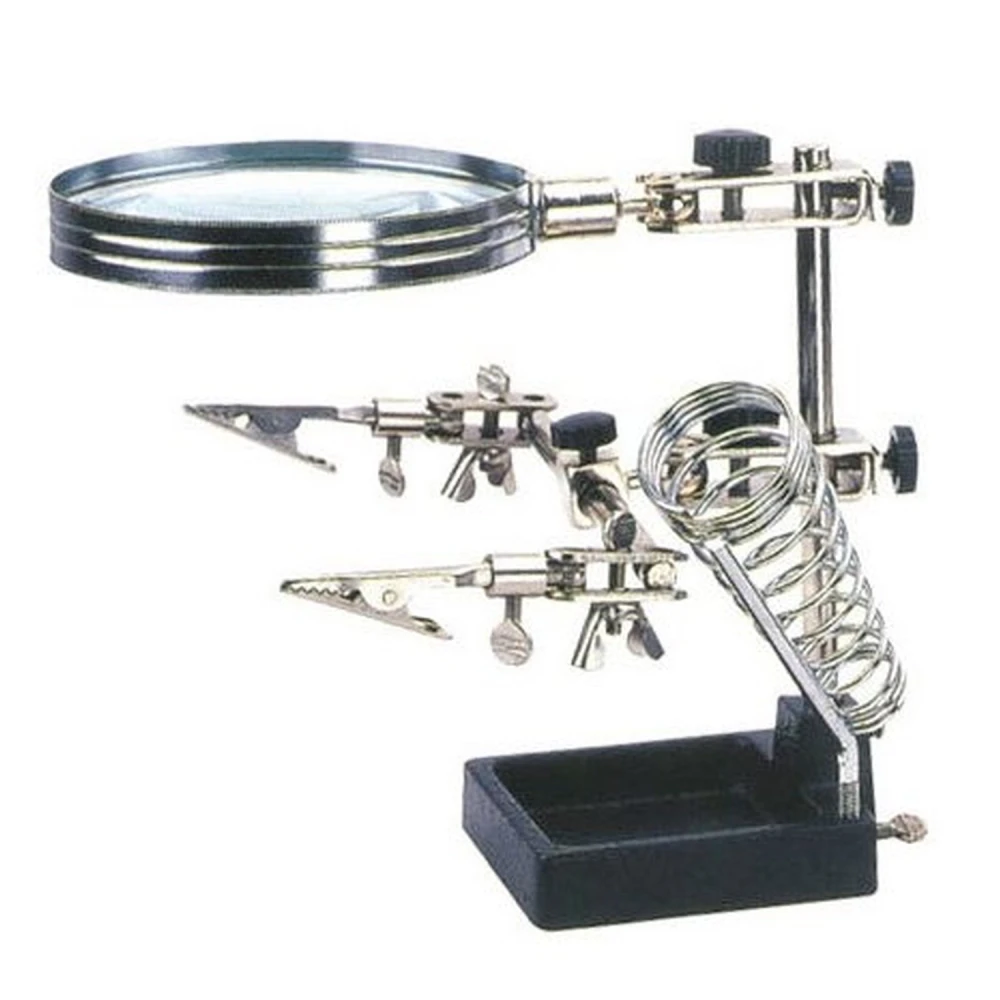

Soldeerhulp met loep voor elektronica en soldeerboutsteun

La lent de 50 mm normalment ofereix un augment de 2x a 3x, cosa que és útil per a soldadura i muntatge de components electrònics estàndard. Tanmateix, per a SMD molt petits, com resistències o ICs de pas fi (<0,8 mm), pot quedar curta en detall en comparació amb lupes especialitzades de més augment. És adequada per a la majoria de soldadura manual bàsica, però limitada per a microelectrònica d’alta densitat.

El suport muntat sol fer aproximadament 150 mm d’alçada, 100 mm d’ample i 70 mm de profunditat, amb una base que pesa al voltant de 300 a 400 g. Aquestes dimensions permeten manipular plaques electròniques petites i mitjanes sense risc de bolcada.

No calen eines especials per al muntatge inicial, ja que la majoria dels elements es fixen manualment. Per als ajustos de ròtules, es recomana estrènyer amb suavitat les femelles amb la mà. Per a la neteja, utilitzeu un drap lleugerament humit i eviteu productes abrasius que puguin ratllar la lent o corroir les parts metàl·liques.

Aquest tipus de suport no està regulat per normes elèctriques internacionals perquè és un accessori mecànic i no porta corrent. Tanmateix, es recomana mantenir el suport sobre una superfície estable i allunyat de materials inflamables quan s’utilitzi el soldador, complint amb pràctiques bàsiques de seguretat en soldadura. Verificar periòdicament que el suport del soldador estigui ben subjecte redueix el risc de desplaçaments accidentals.

The 50 mm lens typically offers 2x to 3x magnification, which is useful for soldering and assembling standard electronic components. However, for very small SMD parts, such as resistors or fine-pitch ICs (<0.8 mm), it may lack detail compared with specialist magnifiers with higher magnification. It is suitable for most basic manual soldering, but limited for high-density microelectronics.

The assembled stand usually measures approximately 150 mm high, 100 mm wide and 70 mm deep, with a base weighing around 300 to 400 g. These dimensions make it suitable for handling small and medium-sized electronic boards without the risk of tipping.

No special tools are required for initial assembly, as most parts are fixed by hand. For adjusting the joints, it is recommended to tighten the nuts gently by hand. For cleaning, use a slightly damp cloth and avoid abrasive products that could scratch the lens or corrode the metal parts.

This type of stand is not subject to international electrical standards because it is a mechanical accessory and does not carry current. However, it is recommended to keep the stand on a stable surface and away from flammable materials when using the soldering iron, following basic soldering safety practices. Periodically checking that the soldering iron holder is securely fixed reduces the risk of accidental movement.

The 50 mm lens typically offers 2x to 3x magnification, which is useful for soldering and assembling standard electronic components. However, for very small SMD parts, such as resistors or fine-pitch ICs (<0.8 mm), it may not provide enough detail compared with specialist magnifiers with higher magnification. It is suitable for most basic manual soldering, but limited for high-density microelectronics.

The assembled stand usually measures approximately 150 mm high, 100 mm wide and 70 mm deep, with a base weighing around 300 to 400 g. These dimensions make it suitable for handling small and medium-sized circuit boards without the risk of tipping.
