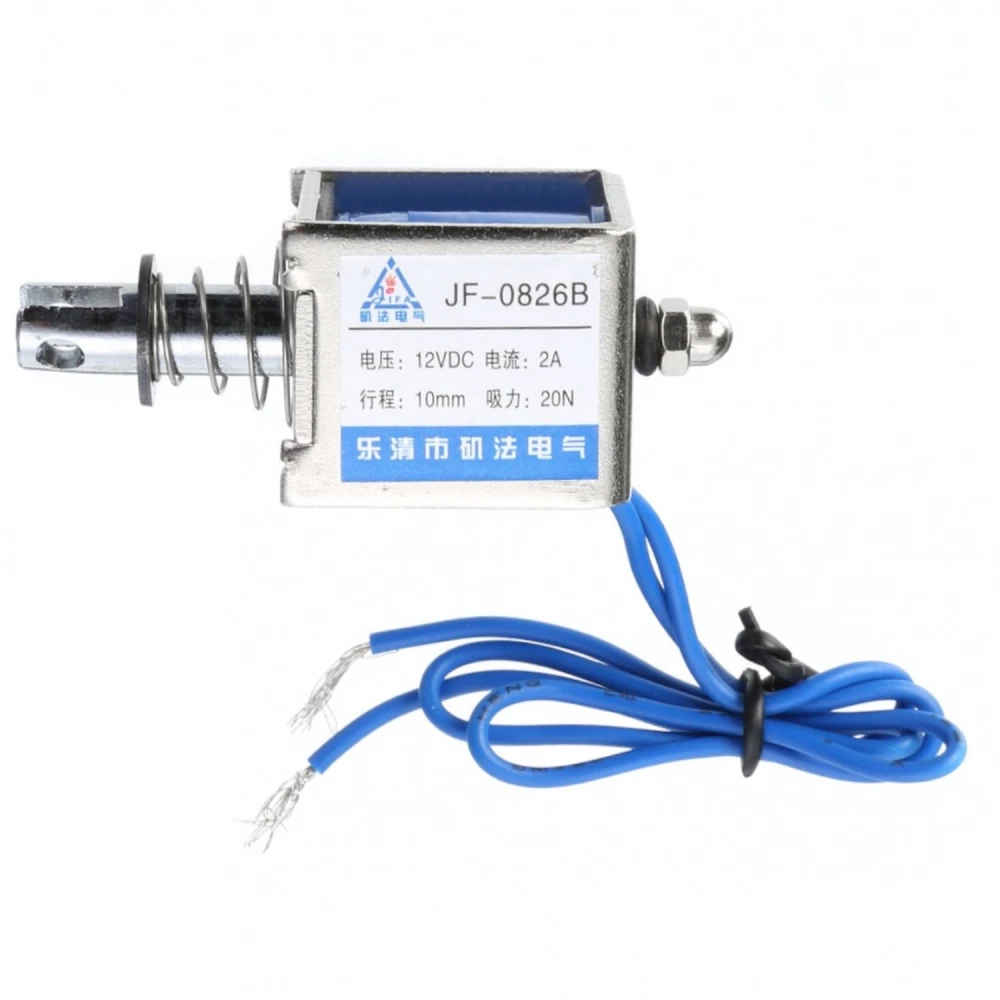

Push-pull solenoïde 12Vdc JF-0826B met veerretour voor Arduino

Aquest electroimant és ideal per a petits sistemes d’automatització, com mecanismes de bloqueig, actuadors de comportes o sistemes de selecció automatitzada, gràcies a la seva força de 20 N i la seva cursa de 10 mm. No és adequat per a aplicacions industrials pesades o entorns amb vibracions elevades.

La bobina té un consum de 2 A a 12 VDC, de manera que presenta una resistència aproximada de 6 Ω (R = V/I). És important alimentar exactament a 12 VDC ±5% per evitar sobreescalfaments o forces insuficients, ja que fora de rang podrien disminuir la vida útil o el rendiment.

El manteniment és mínim: es recomana mantenir net l’èmbol mòbil i evitar l’entrada de pols i humitat. En condicions normals (ús intermitent, sense sobrecàrrega elèctrica), la vida útil típica supera els 100.000 cicles d’operació. Un ús continu podria requerir inspecció i neteja addicionals.

El solenoide està dissenyat per operar de manera intermitent en ambients de 0°C a 40°C. L’ús continu (cicle 100%) pot provocar sobreescalfament: es recomana un cicle de treball ≤50% per dissipar la calor generada segons el consum de 2 A. No és adequat per a entorns amb temperatures extremes o ús prolongat sense descansos.

This electromagnet is ideal for small automation systems, such as locking mechanisms, flap actuators or automated selection systems, thanks to its 20 N force and 10 mm stroke. It is not suitable for heavy industrial applications or environments with high vibration.

The coil draws 2 A at 12 VDC, so it has an approximate resistance of 6 Ω (R = V/I). It is important to supply exactly 12 VDC ±5% to avoid overheating or insufficient force, as operating outside this range could reduce service life or performance.

Maintenance is minimal: it is recommended to keep the moving plunger clean and prevent dust and moisture from entering. Under normal conditions (intermittent use, without electrical overload), the typical service life exceeds 100,000 operating cycles. Continuous use may require additional inspection and cleaning.

The solenoid is designed for intermittent operation in environments from 0°C to 40°C. Continuous use (100% duty cycle) can cause overheating: a duty cycle of ≤50% is recommended to dissipate the heat generated by the 2 A draw. It is not suitable for extreme temperatures or prolonged use without breaks.

This electromagnet is ideal for small automation systems, such as locking mechanisms, flap actuators or automated selection systems, thanks to its 20 N force and 10 mm stroke. It is not suitable for heavy industrial applications or environments with high vibration.

The coil draws 2 A at 12 VDC, so it has an approximate resistance of 6 Ω (R = V/I). It is important to supply exactly 12 VDC ±5% to avoid overheating or insufficient force, as performance or service life may be reduced outside this range.
