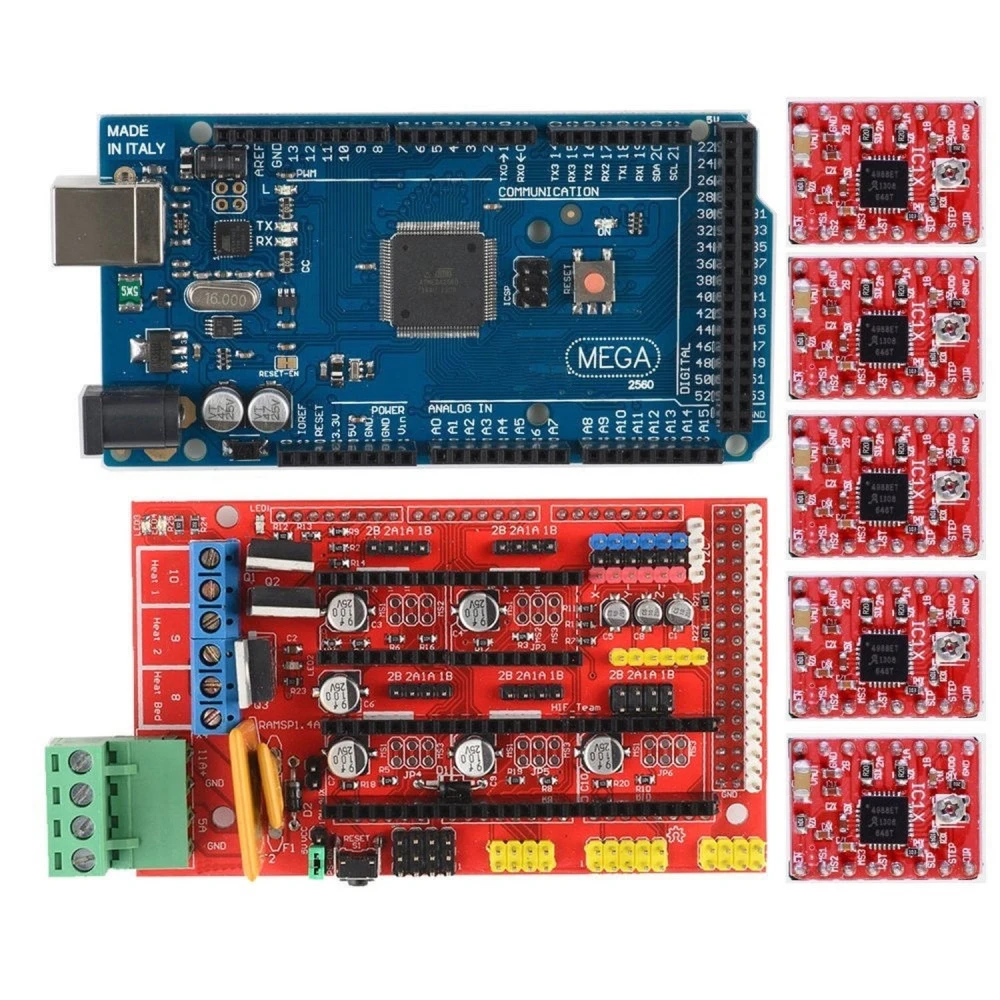

Reprap RAMPS 1.4 + Arduino Mega + 5 A4988 steppermotor drivers voor 3D-printers

El pack RAMPS 1.4 ofereix modularitat per al reemplaçament individual de components, baix cost inicial i una àmplia documentació comunitària. Tanmateix, les plaques tot-en-un solen integrar proteccions avançades, permeten més capacitat de corrent i opcions com drivers silenciosos o altres sensors, a costa de menys flexibilitat i un preu superior.

Cada driver A4988 suporta un voltatge de fins a 35 V DC i una corrent màxima de sortida de 2 A per fase, tot i que es recomana operar al voltant d'1.5 A per motius tèrmics. És fonamental fer servir motors pas a pas que no superin aquests valors i ajustar la Vref a cada driver per evitar sobreescalfament.

Sí, els A4988 inclouen tall automàtic en cas de sobretemperatura (>150 °C aprox.) i protecció POR per excés de corrent. Es recomana instal·lar dissipadors i assegurar una ventilació efectiva per evitar danys, a més de verificar les connexions d'entrada (requereix 12-24 V DC segons la configuració).

The RAMPS 1.4 pack offers modularity for individual component replacement, low initial cost and extensive community documentation. However, all-in-one boards usually integrate advanced protection, allow higher current capacity and options such as silent drivers or other sensors, at the expense of less flexibility and a higher price.

Each A4988 driver supports up to 35 V DC and a maximum output current of 2 A per phase, although operation around 1.5 A is recommended for thermal reasons. It is essential to use stepper motors that do not exceed these values and to adjust the Vref on each driver to avoid overheating.

Yes, the A4988 includes automatic shutdown in the event of overtemperature (approx. >150 °C) and POR protection against overcurrent. It is recommended to fit heatsinks and ensure effective ventilation to avoid damage, as well as checking the input connections (requires 12-24 V DC depending on configuration).

The RAMPS 1.4 pack offers modularity for individual component replacement, low initial cost and extensive community documentation. However, all-in-one boards usually integrate advanced protection, allow higher current capacity and options such as silent drivers or other sensors, at the expense of less flexibility and a higher price.

Each A4988 driver supports up to 35 V DC and a maximum output current of 2 A per phase, although it is recommended to operate at around 1.5 A for thermal reasons. It is essential to use stepper motors that do not exceed these values and to adjust the Vref on each driver to avoid overheating.

Yes, the A4988 includes automatic shutdown in the event of overheating (>150 °C approx.) and POR protection against overcurrent. It is recommended to fit heatsinks and ensure effective ventilation to avoid damage, as well as checking the input connections (requires 12-24 V DC depending on configuration).

RAMPS 1.4-paketet erbjuder modularitet för individuell komponentersättning, låg initial kostnad och omfattande community-dokumentation. Allt-i-ett-kort integrerar dock ofta avancerade skydd, högre strömtålighet och funktioner som tysta drivers eller andra sensorer, men till priset av mindre flexibilitet och högre kostnad.
